SDS Volume
Volume 70. Solubility of Gases in Glassy Polymers, p None
Source Publication
O'Brien, K. C.; Koros, W. J.; Husk, G. R.; Polym. Eng. Sci. 27, 211 (1987).
Conditions:
Room Temp:
308
$\pu{K}$
Pressure:
0 - 1.1
$\pu{MPa}$
Compiler:
Methodology:
A method based on the principle of material balance for all gas introduced into the cell was employed [1,2].
Sample Information:
- Matheson Gas precision mixture $\pu{50 \pm 0.5\%}$ each $\ce{CO2}/\ce{CH4}$.
Composition verified by GC against a certified Matheson gas reference. - Commercial Kapton H: $d = \pu{1.430 g mL-1}$, $M_{\rm{w}} = \pu{39200}$.
PMDA-ODA: $d = \pu{1.402 g mL-1}$, $M_{\rm{w}} = \pu{36900}$; structure confirmed by IR.
Measurement Errors:
Ambient temperature: No information given.
Methodology Citations
1
Sanders, E. S.; Ph.D. Dissertation, North Carolina State University, Raleigh, NC, 1983.
2
Koros, W. J.; Paul, D. R.; J. Polym. Sci., Polym. Phys. Ed., 1976, 14, 1903.
System Components:
- Carbon dioxide, $\ce{ CO2 }$; [124-38-9] NIST WebBook
- Copoly(pyromellitic dianhydride-oxydianiline) (PMDA-ODA), [25036-53-7] NIST WebBook
Experimental Data

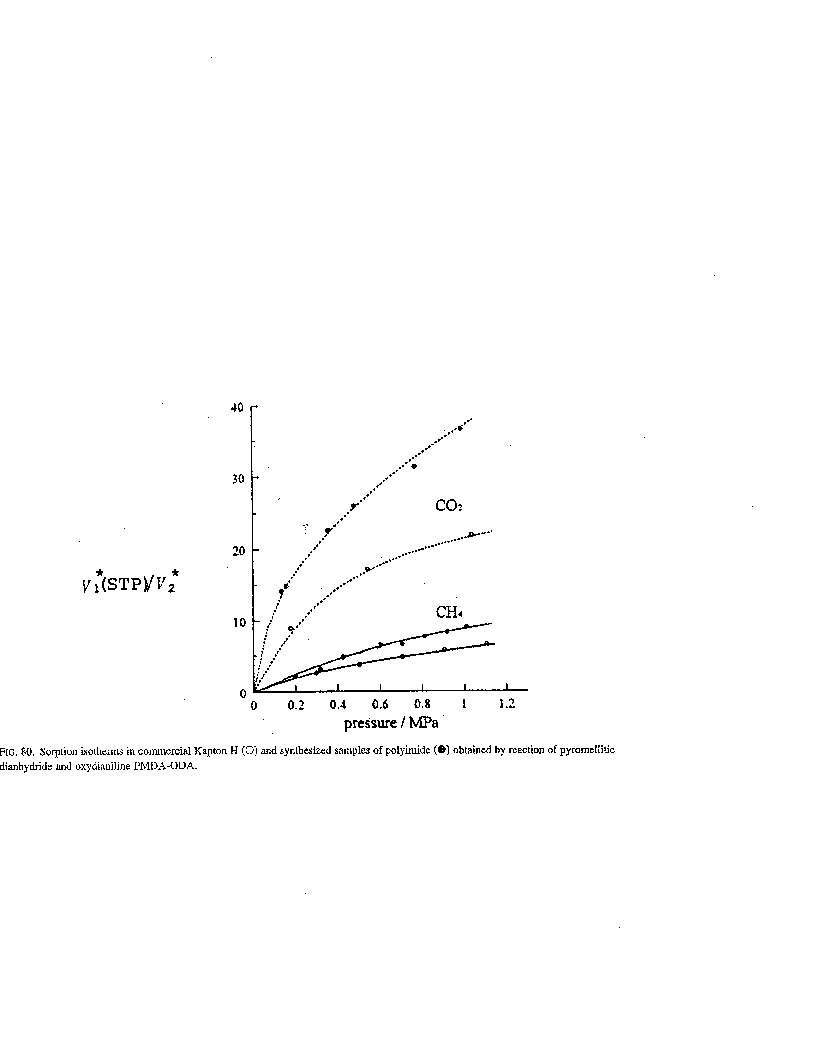

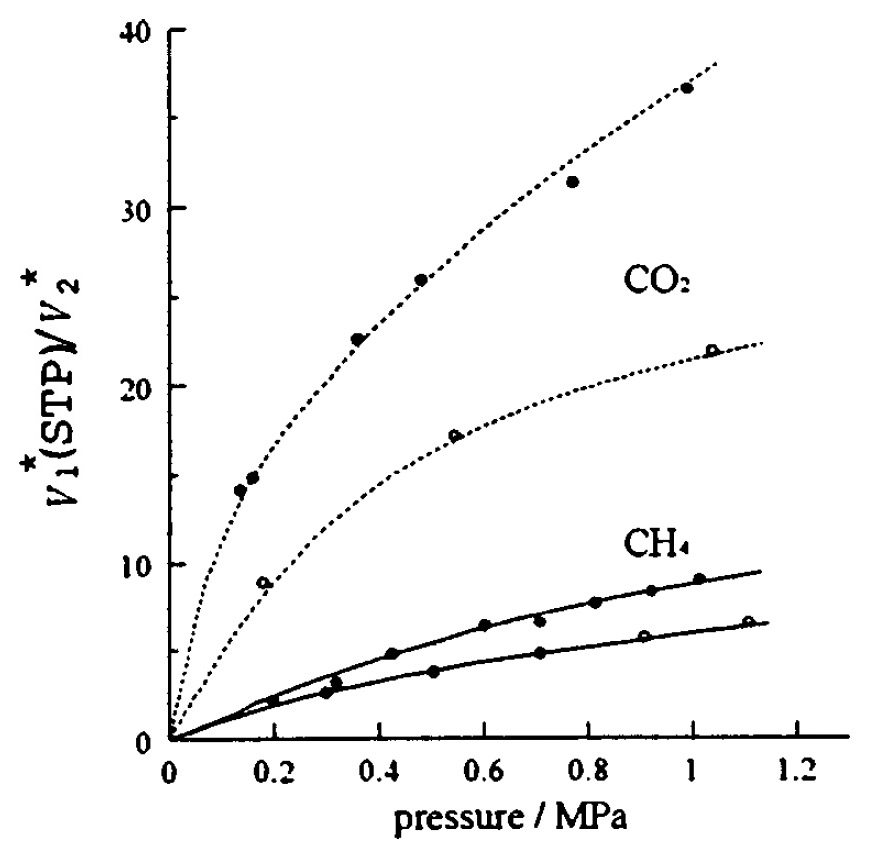

Sorption isotherms in commercial Kapton H (◯) and synthesized samples of polyimide (⏺)
obtained by reaction of pyromellitic dianhydride and oxydianiline PMDA-ODA.
