SDS Volume
Volume 70. Solubility of Gases in Glassy Polymers, p None
Source Publication
Story, B. J.; Koros, W. J.; J. Appl. Polym. Sci. 42, 2613 (1991).
Conditions:
Room Temp:
308
$\pu{K}$
Pressure:
0 - 2.0
$\pu{MPa}$
Compiler:
Methodology:
A standard pressure decay system [1] was used in pure gas sorption. Mixed gas sorption experiments were performed using a special apparatus having additional chambers for preparation and chromatographic sampling of gas mixtures.
Sample Information:
- CPPO: prepared via lithiation into methyl groups with BuLi/THF with subsequent carboxylation and acidification. The average content of COOH groups per repeat unit was 0.22.
Measurement Errors:
Ambient temperature: No information given.
Methodology Citation
1 Koros, W. J.; Paul, D. R.; J. Polym. Sci., Polym. Phys. Ed., 1976, 14, 1903.
System Components:
- Carbon dioxide, $\ce{ CO2 }$; [124-38-9] NIST WebBook
- Methane, $\ce{ CH4 }$; [74-82-8] NIST WebBook
- Carboxylated Poly(phenylene oxide) (C-PPO),

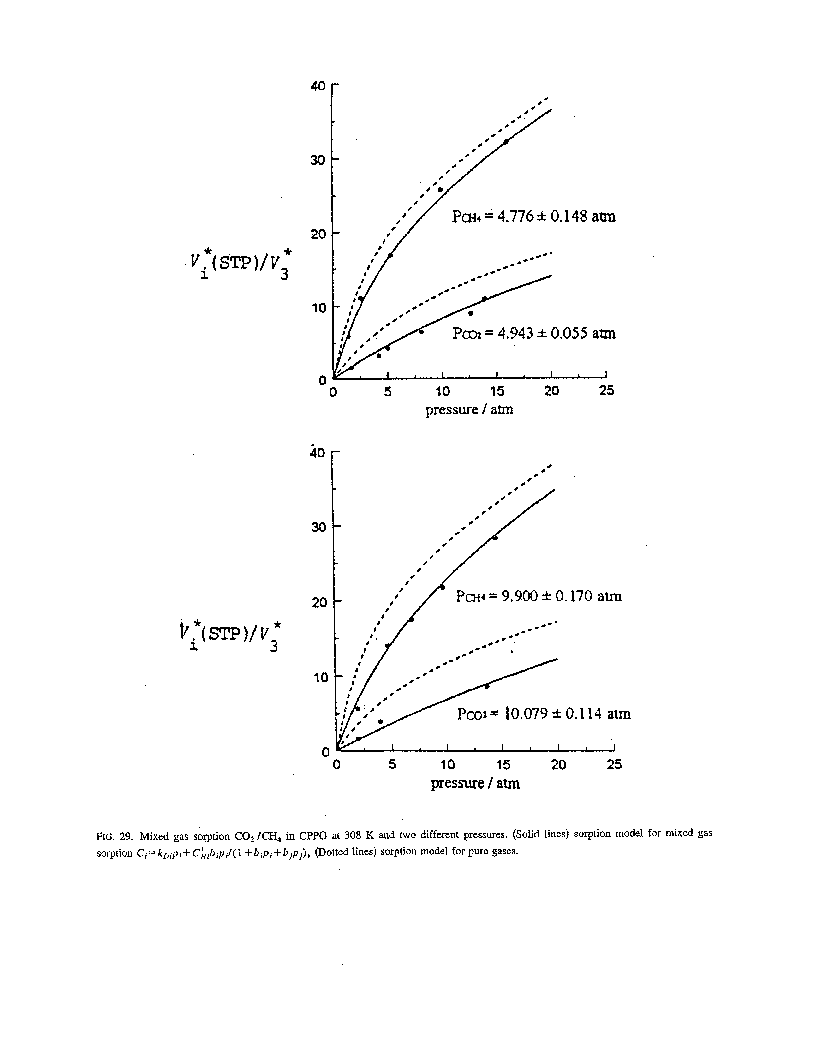

Experimental Data
| $k_{\rm{H}}$ ($\pu{cm3(g) cm-3(s) atm-1}$) | $C_{\rm{H}}^{\prime}$ ($\pu{cm3/cm3}$) | $b$ ($\pu{atm-1}$) |
|---|---|---|
| 0.7918 | 26.28 | 0.2852 |
| 0.2981 | 15.53 | 0.1254 |
None
